EMB-5930 series

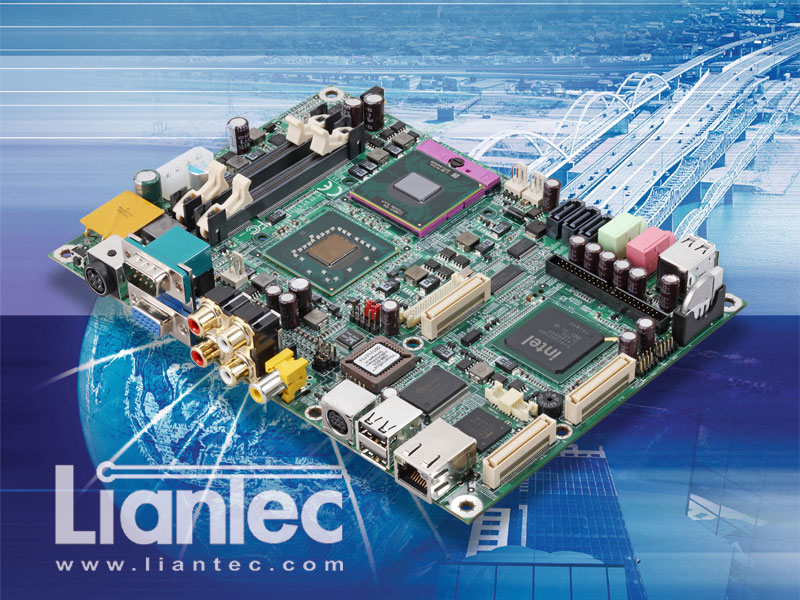

工業級 5.25" Intel GME965 多媒體嵌入式主板

支援 Intel 移動型 Core 2 Duo Merom 處理器

內建繪圖, 音效, �����������口, SATA-II ���� CF ��槽

支援嵌入式 Tiny-Bus® 微型總線擴充模組

支援 +9~36V DC 單電源工作

Bookmark and Share

Liantec Tiny-Bus Modular Extension Solution

  • 5.25" Drive-size EmBoard @ 203 x 146mm

  • Intel GME965 Express Computing Platform

  • Intel Merom Core 2 Duo Mobile CPU at 800 / 533 FSB

  • Two So-DIMM supports Dual Channel 3GB DDR2 SDRAM

  • Intel GME965 GMCH GMA X3100 Graphics with 1x24-bit / 2x18-bit LVDS Transmitter

  • LVDS, CVBS / S-Video / YPbPr TV-out

  • HD Audio with External Audio Input / Output RCA and Front Line-out / Mic-in Phone Jack

  • Intel Gbit Ethernet, SATA-II 3Gbit/s

  • Optional Intel SDVO DVI / LVDS Extension

  • Tiny-Bus® Modular Extension Solution with Dual Channel Intel SDVO Video Extension, 4 x1 (4-lane) PCI Express and 2 PCI Bus Interface.

  • Single +9~36V DC Power Operating

Liantec EMB-5930 : 5.25" Intel GME965 Core2 Duo Mobile Express High Definition Multimedia EmBoard with Tiny-Bus Modular Extension Solution

Liantec EMB-5930 Intel GME965 Core2 Duo Mobile Express High Definition Multimedia EmBoard


Photo Gallery

EMB-5930 Sample Enquiry


||  產品簡介  |  產品特色  |  產品規格  |  訂購資訊  |  系統方案  ||




產品簡介

Liantec EMB-5930 is an industrial x86-based HD (High Definition) multimedia computing solution based on the 5.25-inch drive size form factor, Intel GME965 Express Core 2 Duo Merom (Santa Rosa) mobile computing platform, and features the embedded Tiny-Bus® Modular Extension Solution. With the Intel powerful mobile processing capacity of Santa Rosa Core 2 Duo Mobile Merom platform, onboard LVDS, TV-out, HD audio, Gbit Ethernet, SATA-II 3Gbit/s interfaces, and the Tiny-Bus® modular Extension solution, the EMB-5930 EmBoard meets the demand of the industrial embedded Small Form Factor (SFF) x86 PC-based multimedia computing applications with flexible modular Extension solution.

產品特色

Liantec EMB-5930 industrial 5.25" drive-size Intel GME965 Core 2 Duo Mobile HD multimedia EmBoard offers the features as below for the x86-based embedded HD (High Definition) multimedia computing applications.

  • Compact 5.25” drive-size EBX EmBoard at 203 x 146 mm of dimension.

  • Intel GME965 Express Core2 Duo (Santa Rosa) mobile computing platform with 800/533MHz FSB and 3GBytes DDR2 SDRAM.

  • Optional Intel L7500 / U7500 low power processor for fanless operating.

  • Intel GME965 GMCH built-in GMA X3100 graphics core with VGA, 1x24-bit / 2x18-bit LVDS, CVBS / S-Video / YPbPr TV-out interfaces.

  • Onboard HD audio interface with RCA and phone jack connectors.

  • Onboard PCI Express Gbit Ethernet, SATA-II 3Gbit/s (SATA-300) ports.

  • Tiny-Bus® Modular Extension Solution with dual channel Intel SDVO video extension, 4-lane (four x1 or one x4) PCI Express and dual PCI bus interfaces.

    • Tiny-Bus® Intel SDVO-based Video Extension Module

    • Tiny-Bus® PCI Express Extension Module

    • Tiny-Bus® PCI Extension Module

    • Tiny-Bus® 1U 2-Slot PCIe / PCI Extension Module

    • Tiny-Bus® Peripheral Extension Module

    • Customized Tiny-Bus® Extension Module

  • Four external and four internal USB 2.0 ports.

  • Onboard 8-bit GPIO port with 4-bit digital input and 4-bit digital output.

  • IDE-based bootable / driver-free CompactFlash socket.

  • Single +9 to 36V DC (continued) power operating with external power jack.

  • Compact, slim type and fanless barebone solutions are available.

產品規格

Form Factor

5.25" drive-size form factor at 203 x 146 mm

CPU

Intel Socket P 65nm Merom PPGA478 Core2 Duo mobile CPU

with 800/533MHz FSB

Optional Intel 65nm Merom PBGA479 CPUs for OEM projects.

Compatible Intel Embedded Long-term Supply CPU List

with CPU name / speed / FSB / L2 Cache / core number / TDP

Intel PPGA478 Socket P CPU

  • Intel Core 2 Duo T7500 - 2.20GHz / 800MHz / 4MB / 2 / 35W

  • Intel Celeron M 550 - 2.00GHz / 533MHz / 1MB / 1 / 31W

Intel PBGA479 Onboard Mounted CPU (for OEM only)

  • Intel Core 2 Duo L7500 - 1.60GHz / 800MHz / 4MB / 2 / 17W

  • Intel Core 2 Duo U7500 - 1.06GHz / 533MHz / 2MB / 2 / 10W

  • Intel Celeron ULV 573 - 1.00 GHz / 533MHz / 512KB / 1 / 10W

Memory

Two vertical DDR2 So-DIMM sockets

Supports dual channel 3 GBytes DDR2 SDRAM

Chipset

Intel embedded GME965 Express GMCH and ICH8M chipset

Optional GLE960 GMCH with 533 MHz FSB, 400 MHz graphics core and 2GB DDR2-533 SDRAM support.

Watchdog Timer

Programmable system reset watchdog timer

with 1 to 255 sec. / min. of time out value

Power Management

ACPI 2.0 extensive power management

Real Time Clock

Intel ICH8M chipset built-in RTC with onboard lithium battery

Expansion Interface

Liantec Tiny-Bus® Modular Extension Solution with dual channel Intel SDVO, four x1 / one x4 PCI Express and dual bus master PCI interfaces.

PCI Enhanced IDE

One 44-pin UltraATA100/133 IDE port supports two ATAPI devices

Serial ATA (SATA) Port

Three SATA-II 3Gbit/s (300MBps) ports

with 3Gbit/s of raw bandwidth or 300MBytes/s of data transfer speed

Video Interface



Intel GME965 GMCH built-in GMA X3100 500 MHz graphics core

32-bit 3D graphics engine with eight graphics cores

Supports Microsoft DirectX 10 and OpenGL 2.0

with 2*18-/1*24-bit LVDS TFT LCD transmitter and TV-out encoder

External DB15 female connector for CRT on rear I/O panel

External CVBS RCA connector on rear I/O panel

External 7-pin S-Video / YPbPr connector on real I/O panel

* YPbPr should be connected with MiniDIN to 3 RCAs cable

Onboard 40-pin Hirose DF13-40DP-1.25V LVDS connector

Video Extension Interface



Intel GME965 GMCH built-in dual channel Intel SDVO interfaces

Supports Tiny-Bus® Intel SDVO to DVI, LVDS, TV-out video extension modules.

Audio Interface

Intel Azalia HD audio with ICH8M & ALC888S codec

External right/left audio input/output RCA on rear I/O panel

External line-out / mic-in phone jacks on front panel

Ethernet Interface

Onboard PCI Express Intel 82574L Gigabit Ethernet interface

10/100/1000BASE-TX auto-switching, IEEE802.3U compliant

External RJ45 connector with LED on rear I/O panel

Hi-Speed USB 2.0

Intel ICH8M chipset built-in Hi-Speed USB 2.0 interface

with 4 external (2 front and 2 rear) and 4 internal USB ports

Multi-I/O Port

Dual RS232 serial ports with one external and one internal port

GPIO Port

8-bit GPIO with 4-bit digital input and 4-bit digital output

Onboard 2x5 GPIO pin header

External I/O Port

Rear I/O Panel

Power switch, DC power jack, VGA/COM, dual audio RCA, CVBS AV / S-Video TV-out, dual USB 2.0, RJ45 Ethernet

Front Panel

Line-out / Mic-in audio phone jack, dual USB 2.0 ports

Solid State Flash Disk

CompactFlash Card

CompactFlash socket supports CompactFlash Card (CFC)

Supports PIO mode 4 / Multi-Word mode 2

Default setting as secondary IDE port at master mode

Bootable, driver free IDE-based flash disk

Flash memory capacity up to 16 GBytes (and beyond)

DiskOnModule Flash Disk

IDE-based, bootable, driver free DiskOnModule flash disk

Supports PIO mode 4 / Multi-Word mode 2

Flash memory capacity up to 8 GBytes (and beyond)

Tiny-Bus® Modular Extension Solution

Liantec Tiny-Bus Modular Extension Solution

EMB-5930 with Tiny-Bus® Modular Extension Solution, supports dual channel Intel SDVO, four x1 / one x4 PCI Express and dual bus master PCI interfaces.

Tiny-Bus® Graphics / Video Extension Module

TBM-16SDVOA : SDVO DVI, TV, HDTV, Mini-PCI Module

TBM-16SDVOB : SDVO DVI, TV, Y/Pb/Pr HDTV, Mini-PCI Module

TBM-16SDVOD : SDVO Dual DVI and Mini-PCI Module

TBM-16SDVOX : SDVO Dual 2*18-/24-bit LVDS Module

Tiny-Bus® PCI Express Extension Module

TBM-1400 : PCIe Dual MiniCard / Wi-Fi Module

TBM-1410 : PCIe ExpressCard and Mini-PCI Module

TBM-1420 : PCIe 4-Channel / 120 fps Video Capture Module

TBM-1430 : PCIe 4-Port Gbit Ethernet Switch Module

TBM-1440 : PCIe Four Intel 82573L Gbit Ethernet and mPCI Module

TBM-1441 : PCIe Four Intel 82574L Gbit Ethernet and mPCI Module

TBM-1442 : PCIe Dual Bypass Intel Gbit Ethernet and mPCI Module

TBM-1450 : PCIe IEEE1394b 800Mbps Firewire and mPCI Module

TBM-1460 : PCIe eSATA/SATA 3Gbit/s Multiplier and mPCI Module

Tiny-Bus® PCI Extension Module

TBM-1200 : PCI Dual Mini-PCI Module

TBM-1210 : PCI Dual PCMCIA and Mini-PCI Module

TBM-1220 : PCI Video Capture and Mini-PCI Module

TBM-1222 : PCI 4-CH / 120 fps Video Capture and Mini-PCI Module

TBM-1230 : PCI 4-Port Fast Ethernet Switch and Mini-PCI Module

TBM-1240 : PCI 4-Port Gbit / Fast Ethernet and Mini-PCI Module

TBM-1241 : PCI IEEE802.3af +48V PoE PSE Fast Ethernet Module

TBM-1242 : PCI Dual Bypass Intel Fast Ethernet and mPCI Module

TBM-1250 : PCI Multiple RS-232 COM and Mini-PCI Module

TBM-1251 : PCI Multiple RS-232 and Isolated RS-422/485 Module

TBM-1260 : PCI IEEE1394 Firewire and Mini-PCI Module

TBM-1261 : PCI External / Internal USB 2.0 and Mini-PCI Module

TBM-12PCM : PCI PC/104-Plus and Mini-PCI Module

Tiny-Bus® 1U / 2-Slot PCIe / PCI Extension Module

TBM-X1700 : Tiny-Bus 1U 2-Slot x16 / x1 PCIe Extension Module

TBM-X2000PE : Tiny-Bus 1U 2-Slot PCIe / PCI Extension Module

TBM-X2000P2 : Tiny-Bus 1U 2-Slot PCI Extension Module

Tiny-Bus® Compliant Accessory / Development Tool Module

TBM-DB25 : Tiny-Bus 2.5" Drive Bay Module

TBM-HDK-PCI : Tiny-Bus PCI Hardware Development Module

TBM-HDK-PCIE : Tiny-Bus PCIe Hardware Development Module

Customized Tiny-Bus® Extension Module

Other customized Tiny-Bus® extension modules based on Intel SDVO, x1/x4 PCIe and PCI bus interfaces with EMB-5930 EmBoard for ODM / OEM projects.

Environment

Power Requirement : Single +9~36V DC (continued) power input

Power Connector : External 4-pin DC jack

Board Dimension: 203 x 146 mm (L x W)

Operation Temperature : 0 ~ 60oC (32 ~ 140oF) with CPU cooler

Storage Temperature: -40 ~ 85oC (-40 ~ 185oF)

Operating Humidity: 10 ~ 90% relative humidity, non-condensing.

訂購資訊

Model Name

Description

EMB-5930S



5.25" Intel GME965 Core2 Duo Mobile Multimedia EmBoard

with VGA, LVDS, TV-out, HD Audio Input / Output RCA

Intel Gbit Ethernet, SATA-II 3Gbit/s, Mini-PCI and CF Socket

EMB-5930CM573



5.25" Intel GME965 Celeron M 573 Multimedia EmBoard

with Onboard Intel Celeron M 573 ULV Fanless Processor

GME965 GMCH VGA, LVDS, TV-out, HD Audio Input / Output RCA

Intel Gbit Ethernet, SATA-II 3Gbit/s, Mini-PCI and CF Socket

EMB-5930LCM573

(OEM Only)



5.25" Intel GLE960 Celeron M 573 Multimedia EmBoard

with Onboard Intel Celeron M 573 ULV Fanless Processor

GLE960 GMCH 400 MHz Graphics Core, 2 GB DDR2 SDRAM

VGA, LVDS, TV-out, HD Audio Input / Output RCA

Intel Gbit Ethernet, SATA-II 3Gbit/s, Mini-PCI and CF Socket

EMB-5930-OEM



Customized configuration based on existing EMB-5930 EmBoard with optional onboard CPU, DRAM, functions, Tiny-Bus modules and other integration service.

系統方案

Model Name

Description

5.25" Drive-size Intel GME965 HD Multimedia Platform

  • 5.25" Drive-size Enclosure at 210 x 44 x 153 mm (W x H x D)

  • Supports Intel Core 2 Duo Mobile CPU and DDR2 SDRAM

  • Intel GME965 GMCH Built-in GMA X3100 Graphics Core

  • External HD Audio / Video Output RCA Connectors

  • Onboard PCIe Intel Gbit Ethernet Interface

  • Tiny-Bus® Modular Extension Solution

  • Onboard CompactFlash Socket

  • External 60W AC/DC Power Adapter

LPC-5930MP

Liantec LPC-5930MP Intel GME965 Multimedia Platform with Tiny-Bus Modular Extension Solution

Intel Core 2 Duo Mobile HD Multimedia Computing Platform

  • 5.25" Drive-size Enclosure at 290 x 44 x 153 mm (W x H x D)

  • Supports Intel Core 2 Duo Mobile CPU and DDR2 SDRAM

  • Intel GME965 GMCH Built-in GMA X3100 Graphics Core

  • External HD Audio / Video Output RCA Connectors

  • Onboard PCIe Intel Gbit Ethernet Interface

  • Tiny-Bus® Modular Extension Solution

  • Onboard CompactFlash Socket

  • Internal 60W 90~264V / 47~63Hz AC/DC Power Adapter

LPC-5930MD

Liantec LPC-5930MD Intel GME965 Multimedia Platform with Tiny-Bus Modular Extension Solution

Intel Core 2 Duo Mobile HD Multimedia Computing Platform

  • 5.25" Drive-size Enclosure at 290 x 44 x 153 mm (W x H x D)

  • Supports Intel Core 2 Duo Mobile CPU and DDR2 SDRAM

  • Intel GME965 GMCH Built-in GMA X3100 Graphics Core

  • External HD Audio / Video Output RCA Connectors

  • Onboard PCIe Intel Gbit Ethernet Interface

  • Tiny-Bus® Modular Extension Solution

  • Onboard CompactFlash Socket

  • External 60W AC/DC Power Supply

LPC-5930-OEM

Customized OEM configuration based on the existing EMB-5930 EmBoard with compatible Intel uFC-BGA CPU, optional onboard interfaces, Tiny-Bus extension modules, system enclosure, embedded peripheral and other integration service.



< See Also >

Liantec TBM-16SDVOD Tiny-Bus Dual Intel SDVO DVI Module

TBM-16SDVOD

Tiny-Bus Dual Intel SDVO DVI and Mini-PCI Module


Liantec TBM-16SDVOD Tiny-Bus Intel SDVO DVI and YPbPr HDTV Module

TBM-16SDVOB

Tiny-Bus Dual Intel SDVO DVI and Mini-PCI Module


Liantec TBM-1400 Tiny-Bus Dual PCIe MiniCard Extension Module

TBM-1400

Tiny-Bus PCIe Dual MiniCard Extension Module with Wi-Fi LED / SMA Antenna Connector


Liantec TBM-1420 Tiny-Bus PCIe Quad Channel Video Capture Module

TBM-1420

Tiny-Bus PCIe Video Capture Module with Four Channel / Real Time / Full Color Video Input


Liantec TBM-1450 Tiny-Bus PCIe IEEE1394b FireWire 800 Extension Module

TBM-1450

Tiny-Bus PCIe 3-Port IEEE1394b FireWire800 Module


Liantec TBM-1200 Tiny-Bus Dual Mini-PCI Extension Module

TBM-1200

Tiny-Bus Mini-PCI Module with Dual Mini-PCI Socket


Liantec TBM-X2000 Tiny-Bus 1U 2-Slot PCIe / PCI Extension Module

TBM-X2000

Tiny-Bus 1U 2-Slot PCIe / PCI Extension Module


Liantec TBM-DB25 Tiny-Bus 2.5" Drive Bay Module

TBM-DB25

Tiny-Bus 2.5" Drive Bay Module

See More Liantec Products



網站地圖 Site Map |

(C) Copyright 2003-2012 力安科技 / Liantec Systems Corporation. All Rights Reserved.
